Fluid Dynamics: Unveiling the Power of Traction Gas Springs

Page history last edited by John Snow 6 months, 2 weeks ago

In the realm of mechanical engineering, innovation constantly propels the boundaries of what is achievable. One such innovation that has significantly impacted industries ranging from automotive to furniture is the traction gas spring. This remarkable device, driven by principles of fluid dynamics and mechanics, has transformed the way we interact with everyday objects. This article delves into the mechanics, design considerations, and diverse applications of traction gas springs.

Understanding the Mechanics:

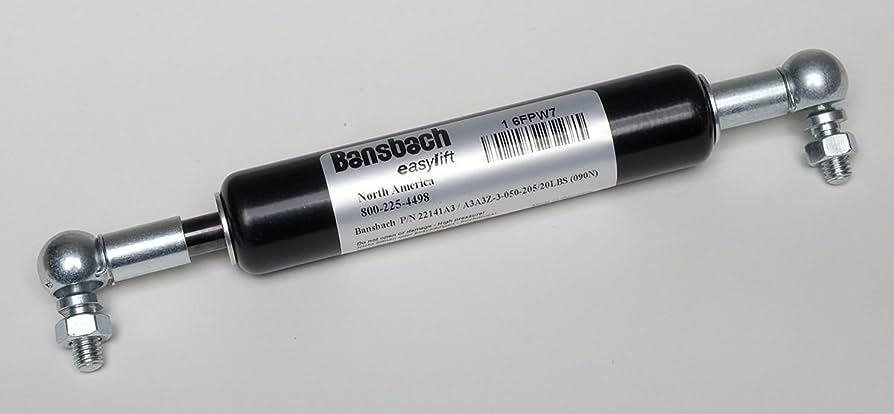

A traction gas spring, also known as a pull-type gas spring, is a mechanical component designed to provide controlled and consistent force in both compression and extension directions. Unlike traditional compression gas springs that push, traction gas springs pull objects apart. The fundamental working principle behind a traction gas spring lies in the manipulation of pressurized gas within a sealed cylinder.

At the core of a traction gas spring is a piston connected to a rod. The piston separates the cylinder into two distinct chambers: the gas chamber and the oil chamber. The gas chamber contains nitrogen gas, which is typically pressurized. The oil chamber, on the other hand, is filled with oil or a viscous fluid. As force is applied to the rod, the piston slides within the cylinder, compressing the gas and displacing the oil.

The design of traction gas springs involves careful consideration of various parameters, including gas pressure, oil viscosity, piston diameter, and rod length. These factors dictate the force characteristics of the spring, ensuring that it provides the desired level of resistance and extension force.

Key Design Considerations:

  1. Force Profile: The force exerted by a traction gas spring changes throughout its compression and extension cycles. Engineers must tailor the force profile to match the application's requirements. This involves selecting the appropriate gas pressure and designing the piston and rod dimensions accordingly.

  2. Damping: Traction gas springs incorporate damping to control the speed of motion during compression and extension. Damping can be adjusted by altering the oil viscosity, allowing for precise control over the motion of the spring.

  3. Mounting Orientation: The orientation in which the gas spring is mounted plays a crucial role in its performance. Correct orientation ensures optimal force application and prevents unintended movements.

  4. End Fittings: The end fittings of a traction gas spring determine how it is attached to the objects it will act upon. These fittings must be robust, secure, and compatible with the application's design.

Diverse Applications:

Traction gas springs find applications across various industries, each harnessing the unique benefits they offer:

  1. Automotive Industry: Traction gas springs are used in automobile hoods, tailgates, and convertible tops. They provide controlled lifting and support, enhancing user convenience and safety.

  2. Furniture Design: In furniture design, traction gas springs facilitate smooth and controlled movement of reclining chairs, adjustable desks, and lifting mechanisms.

  3. Medical Equipment: Hospital beds, diagnostic tables, and rehabilitation devices utilize traction gas springs to achieve adjustable height and position features.

  4. Aerospace: Traction gas springs contribute to aircraft interior design, supporting folding trays, armrests, and overhead compartments.

  5. Industrial Machinery: These springs assist in the movement of heavy machinery parts, conveyor systems, and industrial access panels.

  6. Marine Applications: Traction gas springs are used in marine environments for hatch lifting, cabin door operation, and seating arrangements.

Conclusion:

Traction gas springs exemplify the fusion of fluid dynamics, mechanics, and engineering innovation. Their ability to provide controlled force and movement has revolutionized various industries, enhancing user experience and functionality. As technology continues to evolve, traction gas springs are poised to further shape our interaction with objects, driving efficiency and convenience to new heights.
